Price:
14950,00 ৳

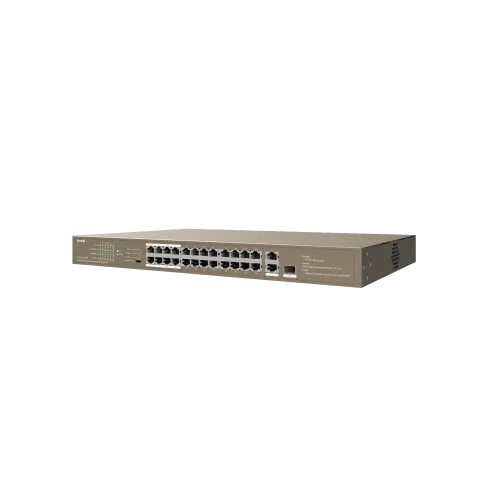

TENDA SWITCH 24 PORT SWITCH POE TEF1126P-250W
Key Features
Model: TEF1126P-24-250W
24 10/100Mbps RJ45 Ports(Data/PoE)
1 10/100/1000Mbps RJ45 Ports(Data)
1 100/1000Mbps SFP Slot(Data)
6 kV lightning protection
Specification
Main Feature | |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
| Advanced Functions | Lightning Protection: 6KV |
| Transmission Method | Recommended: CAT5/5e UTP or better |
| Data Transmission Rate | Forwarding Rates: 6.55 Mpps Switching capacity: 8.8 Gbps |
| MAC Address Table | 16K |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Hardware Features | |
| Interface | 24 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-T Ethernet ports (Data) 1 * 1000 Base-X SFP port (Combo) |
| LED | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED |
| Power Supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power |
| Dimensions (L x W x H) | 440.0mmx178.8mmx44.0mm |
Manufacture Warranty | |
| Warranty | 01-Year Warranty |
Description
Tenda TEF1126P-24-250W 24 Port PoE Gigabit Switch
The Tenda TEF1126P-24-250W is an unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230 W and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend, and VLAN modes, and is an ideal choice for SMBs, hotels, schools, and factories with video surveillance and wireless networking requirements.
